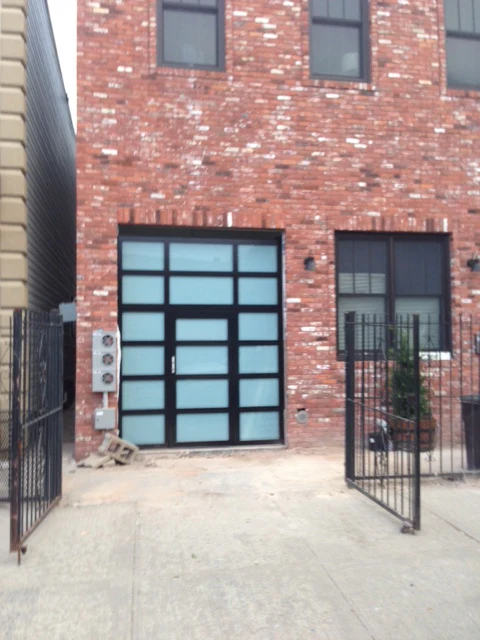

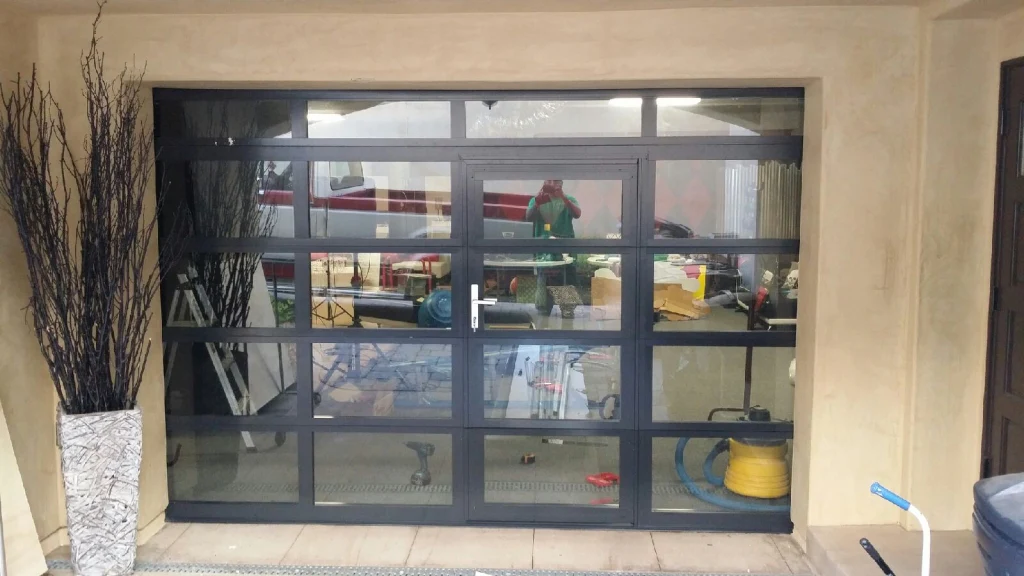

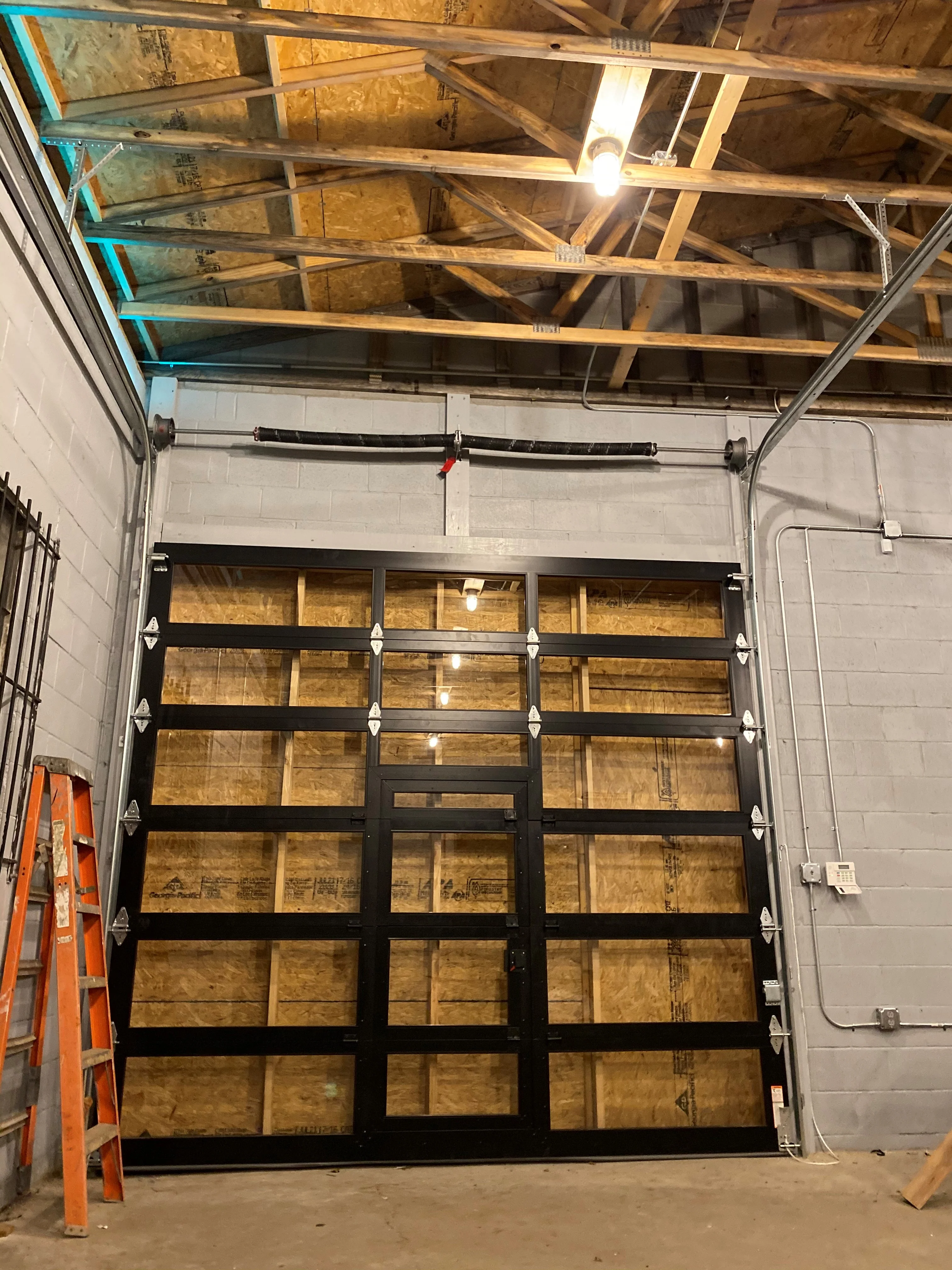

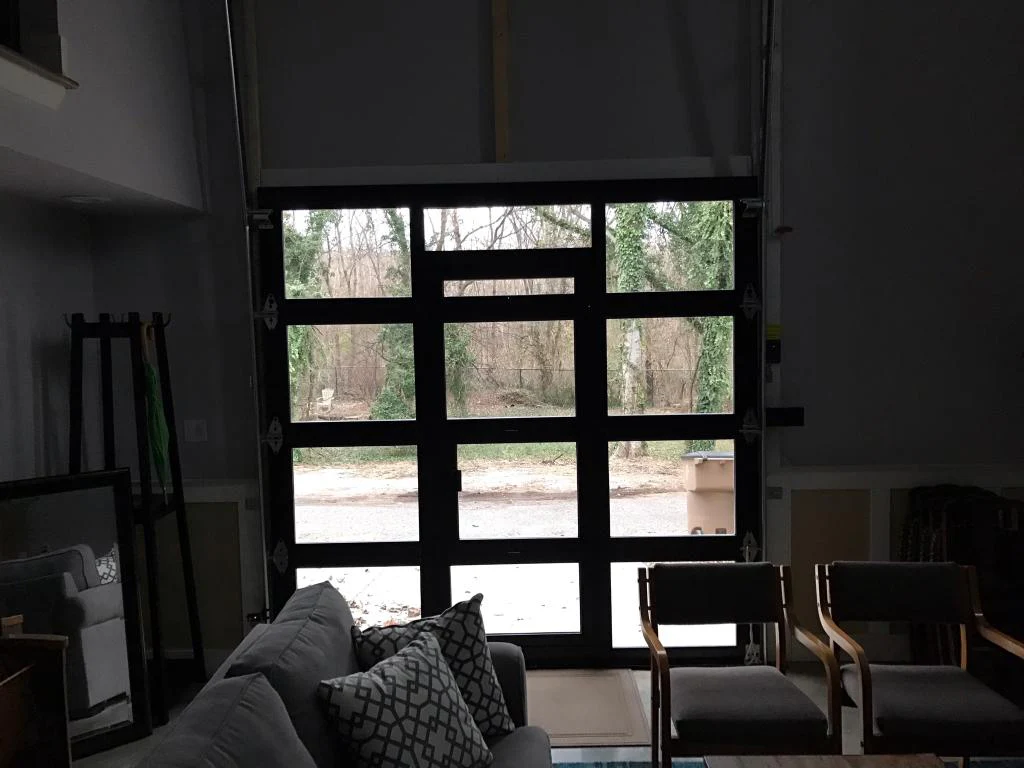

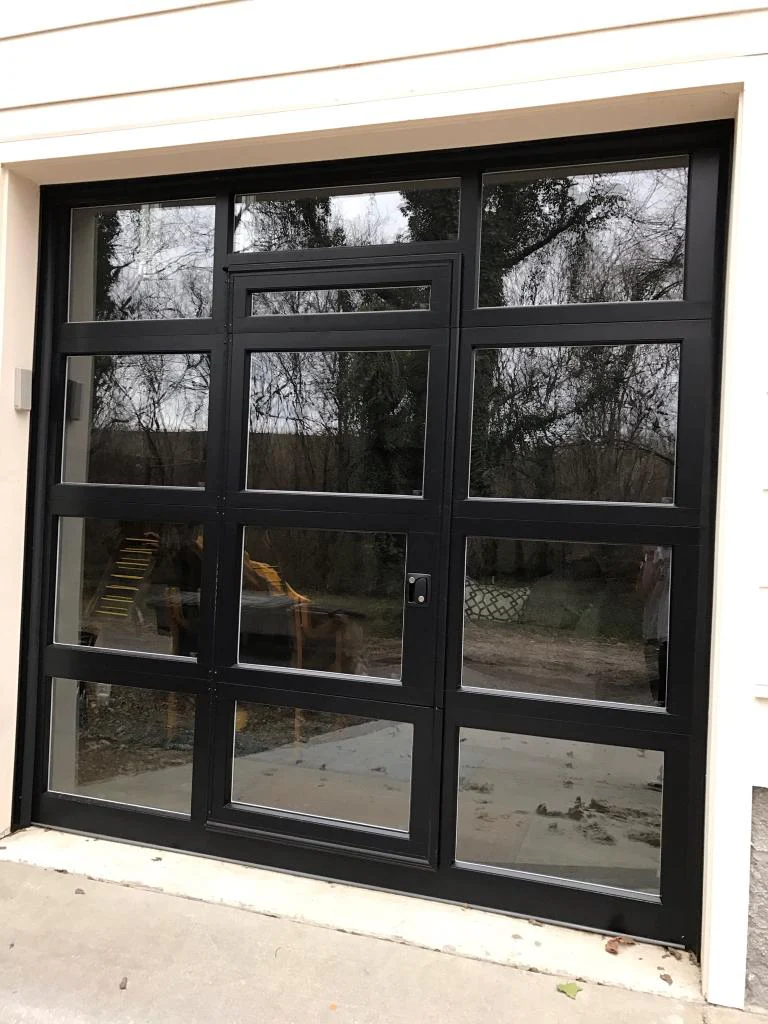

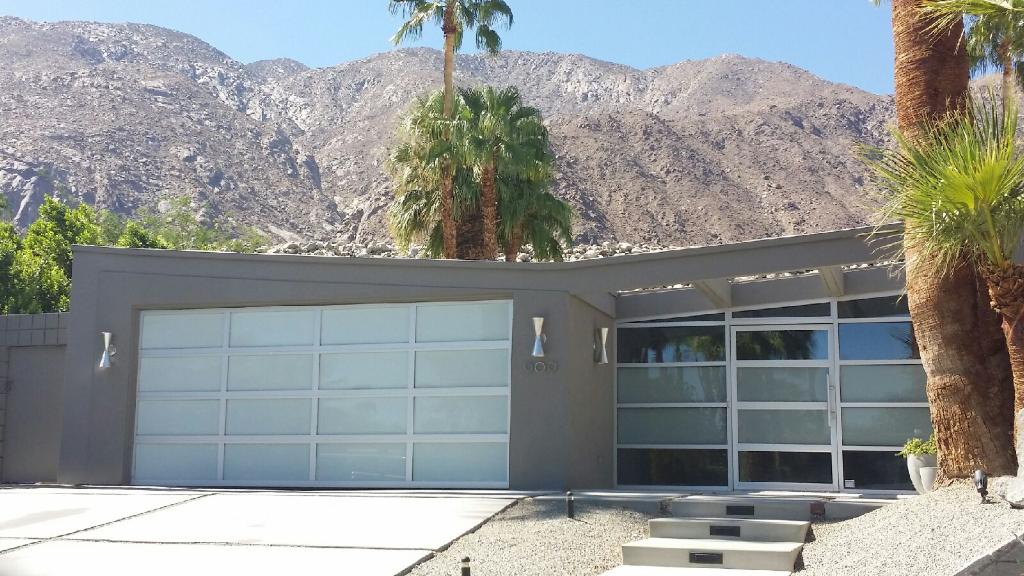

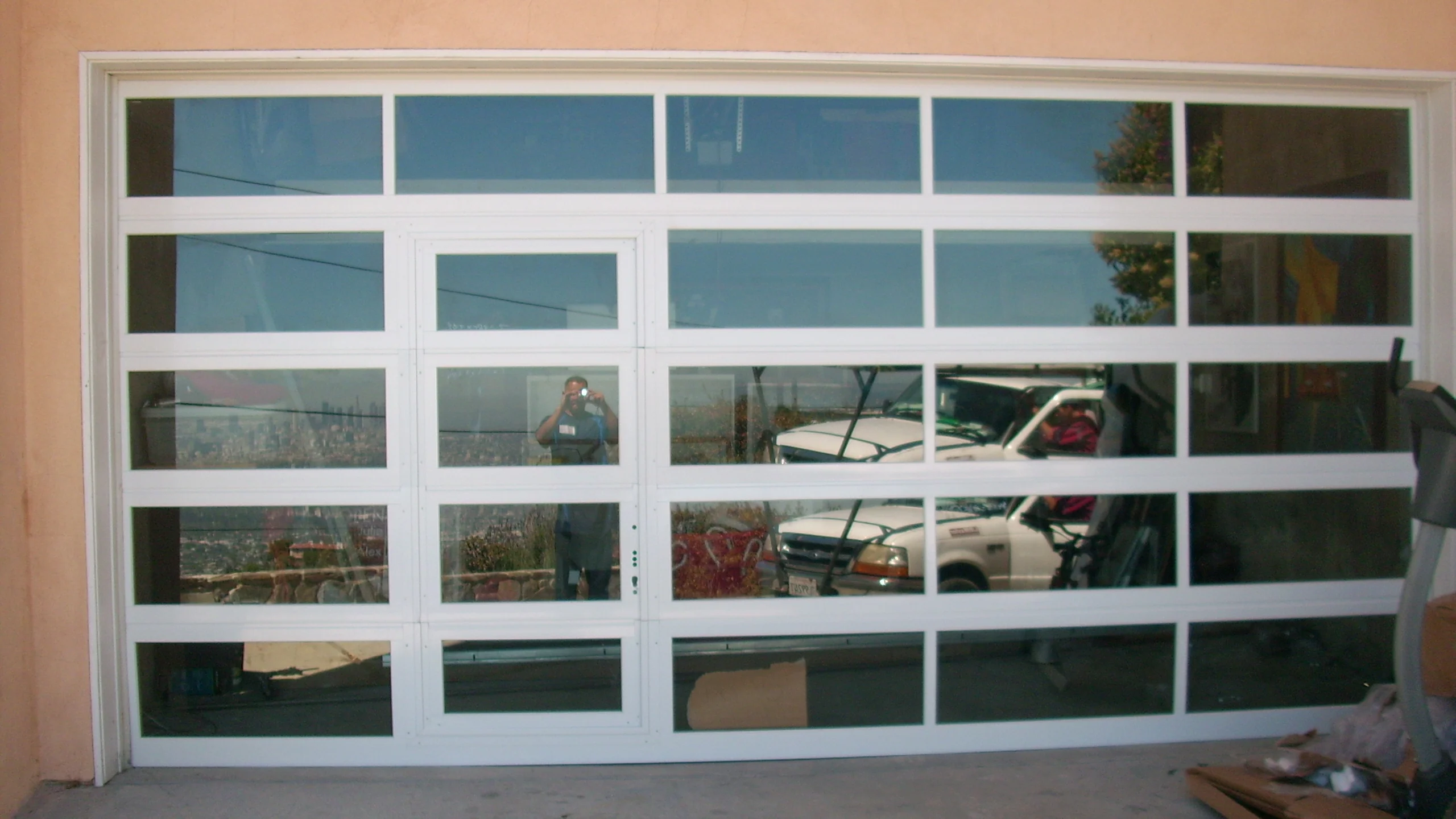

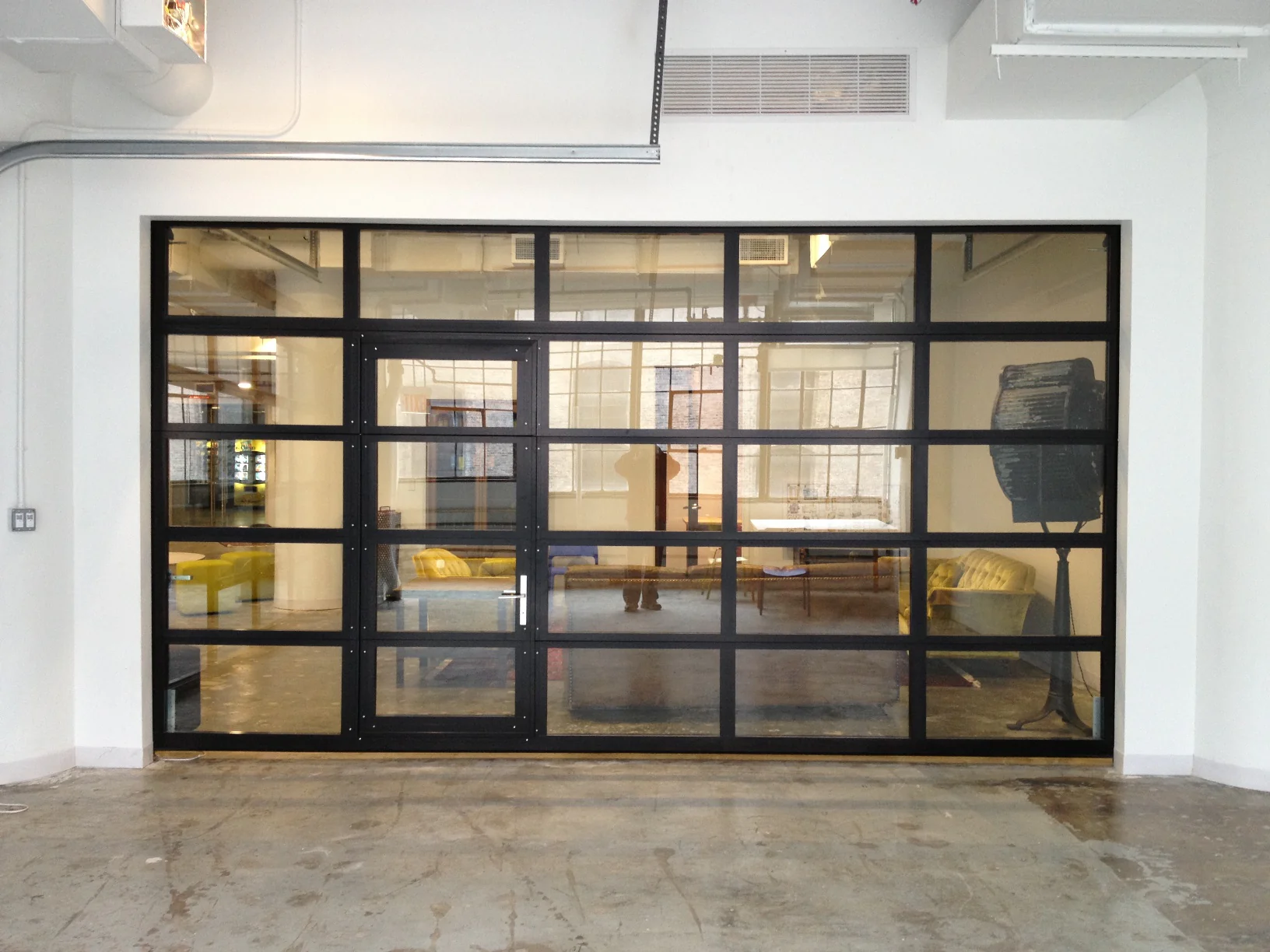

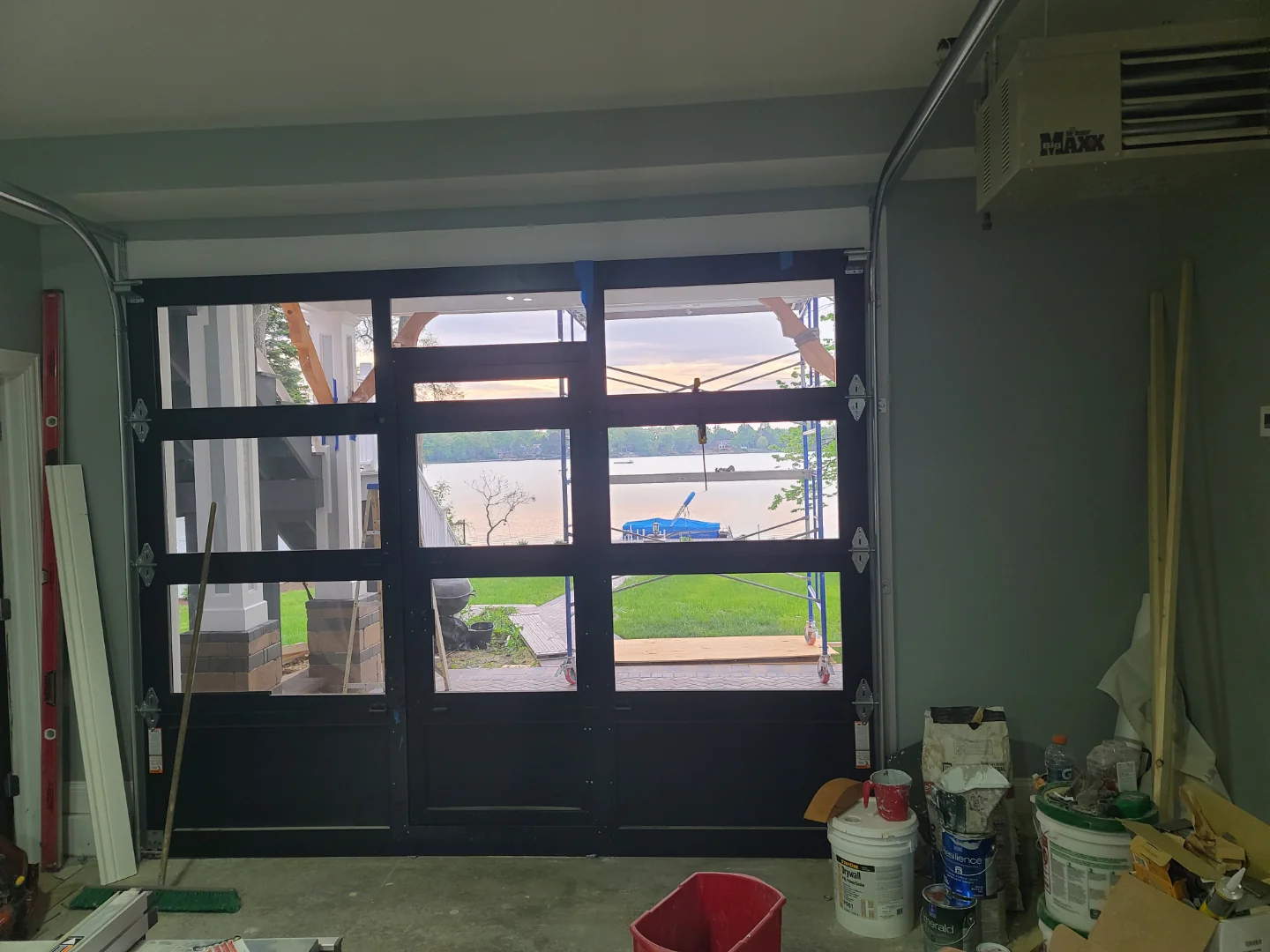

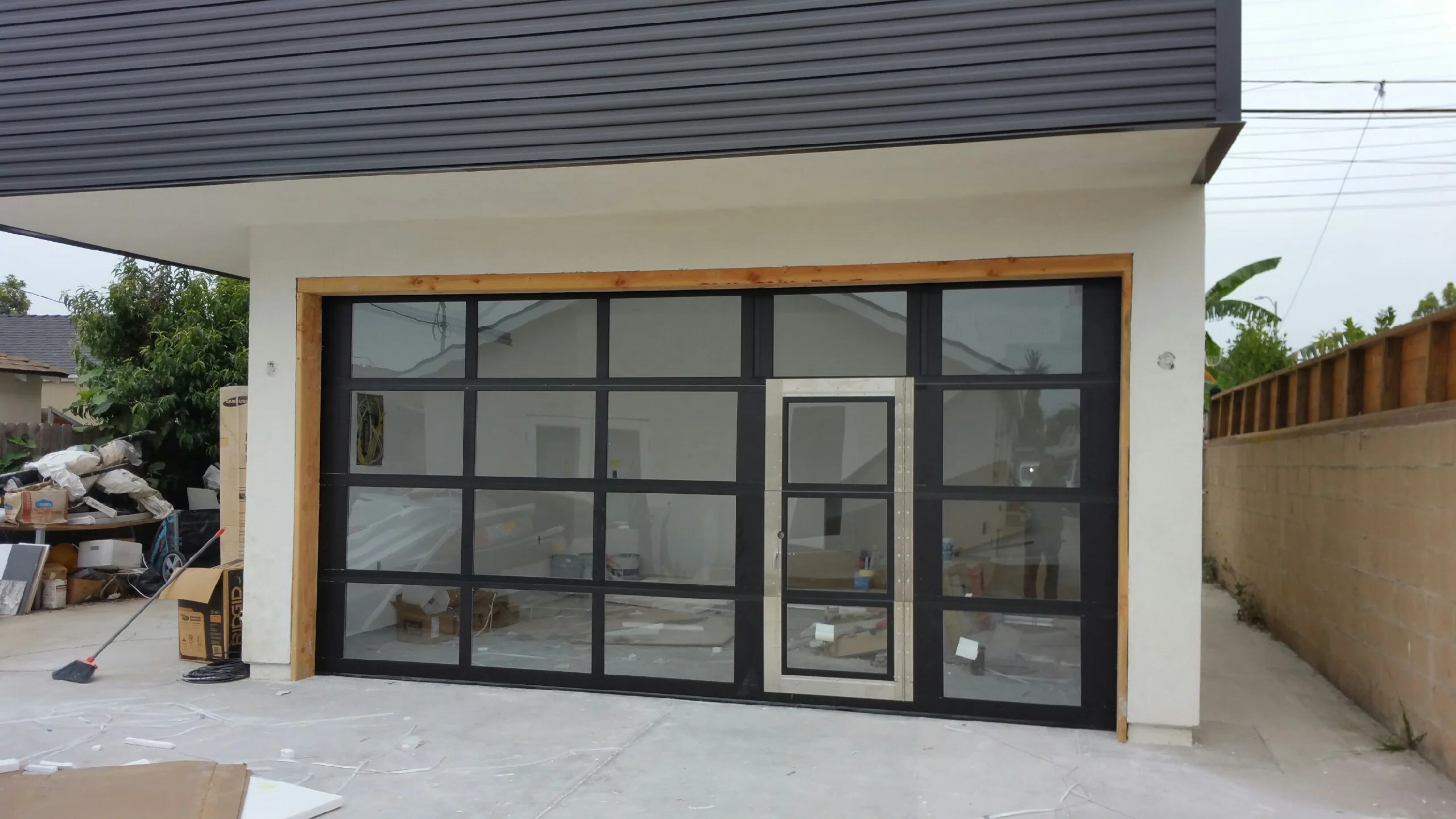

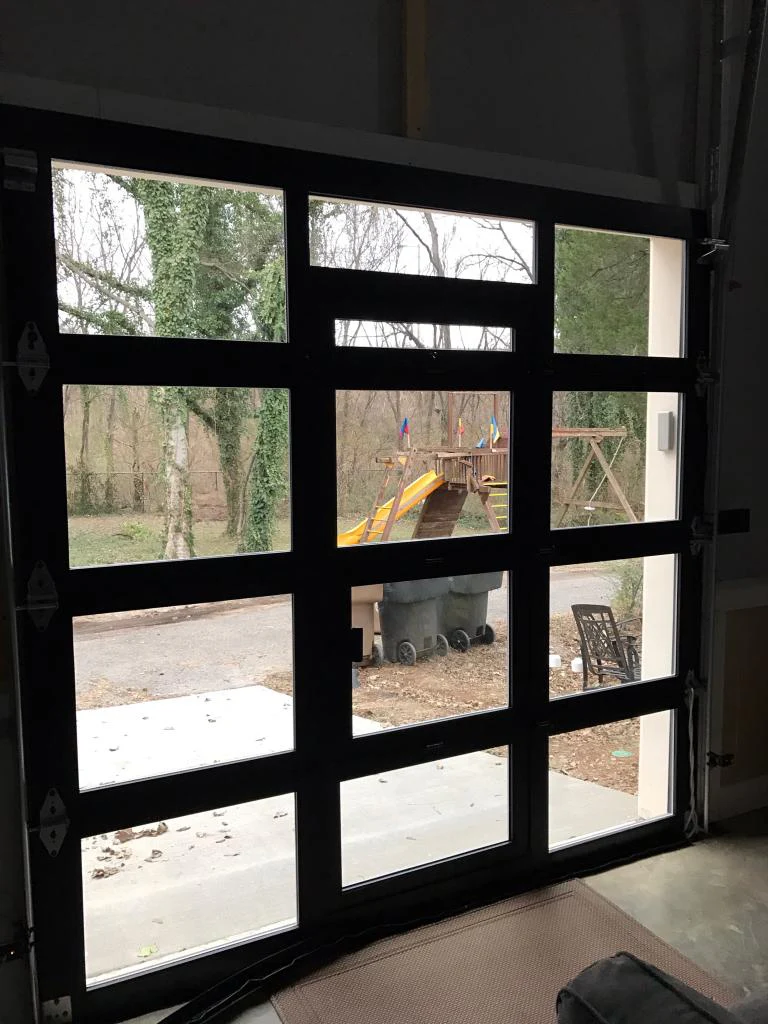

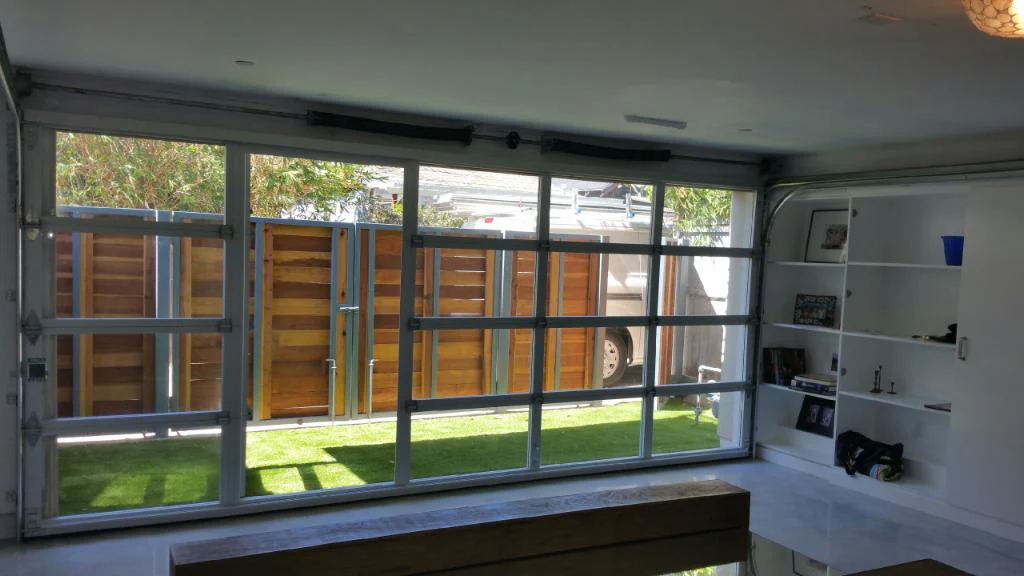

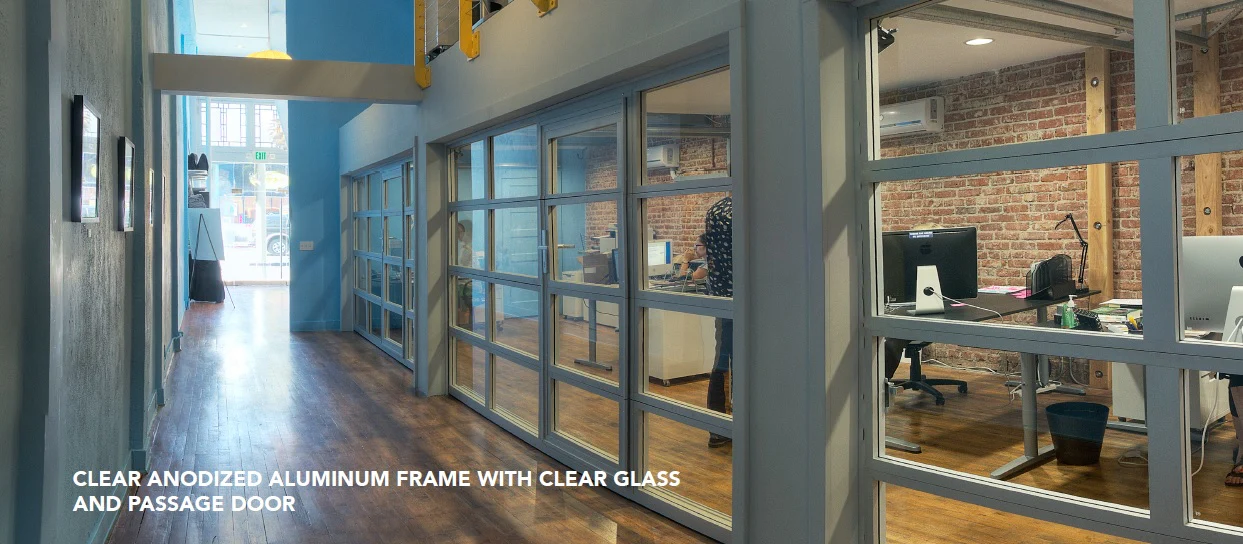

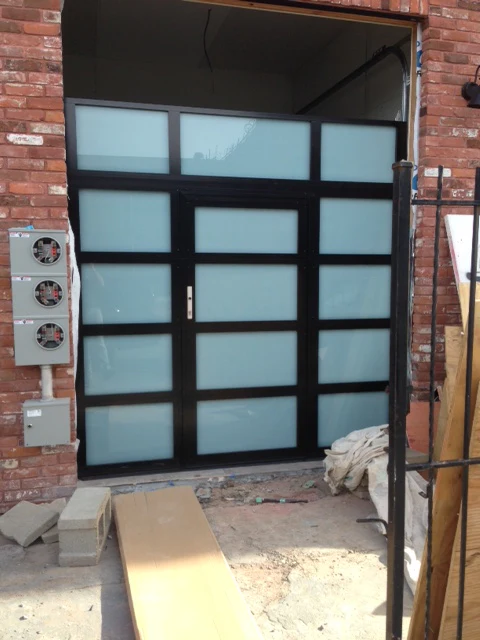

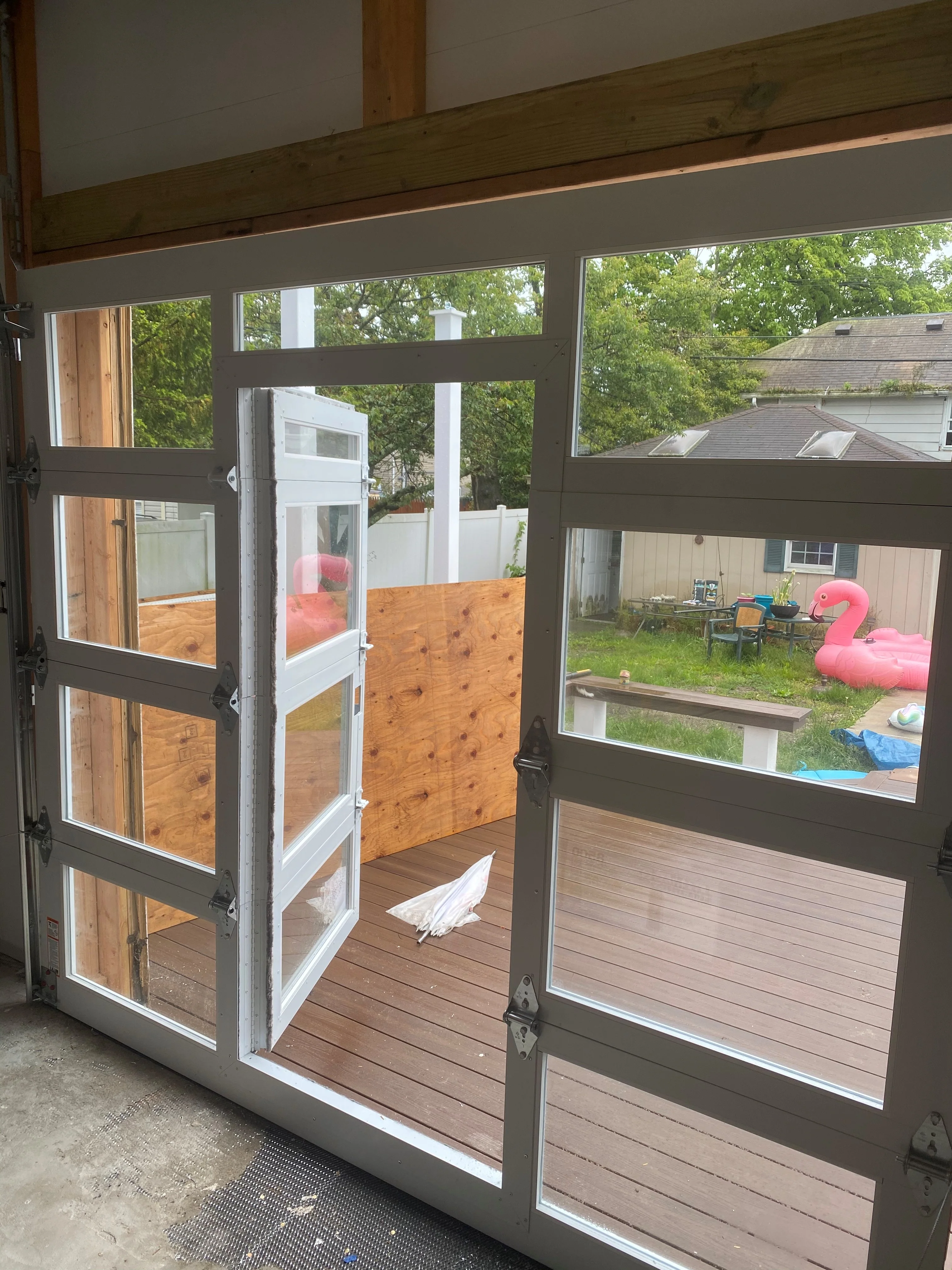

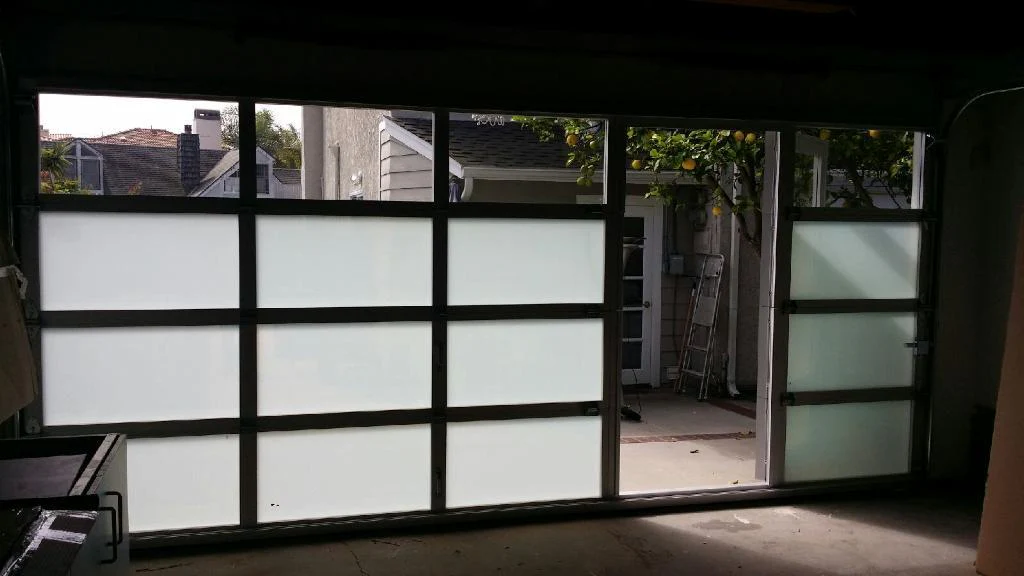

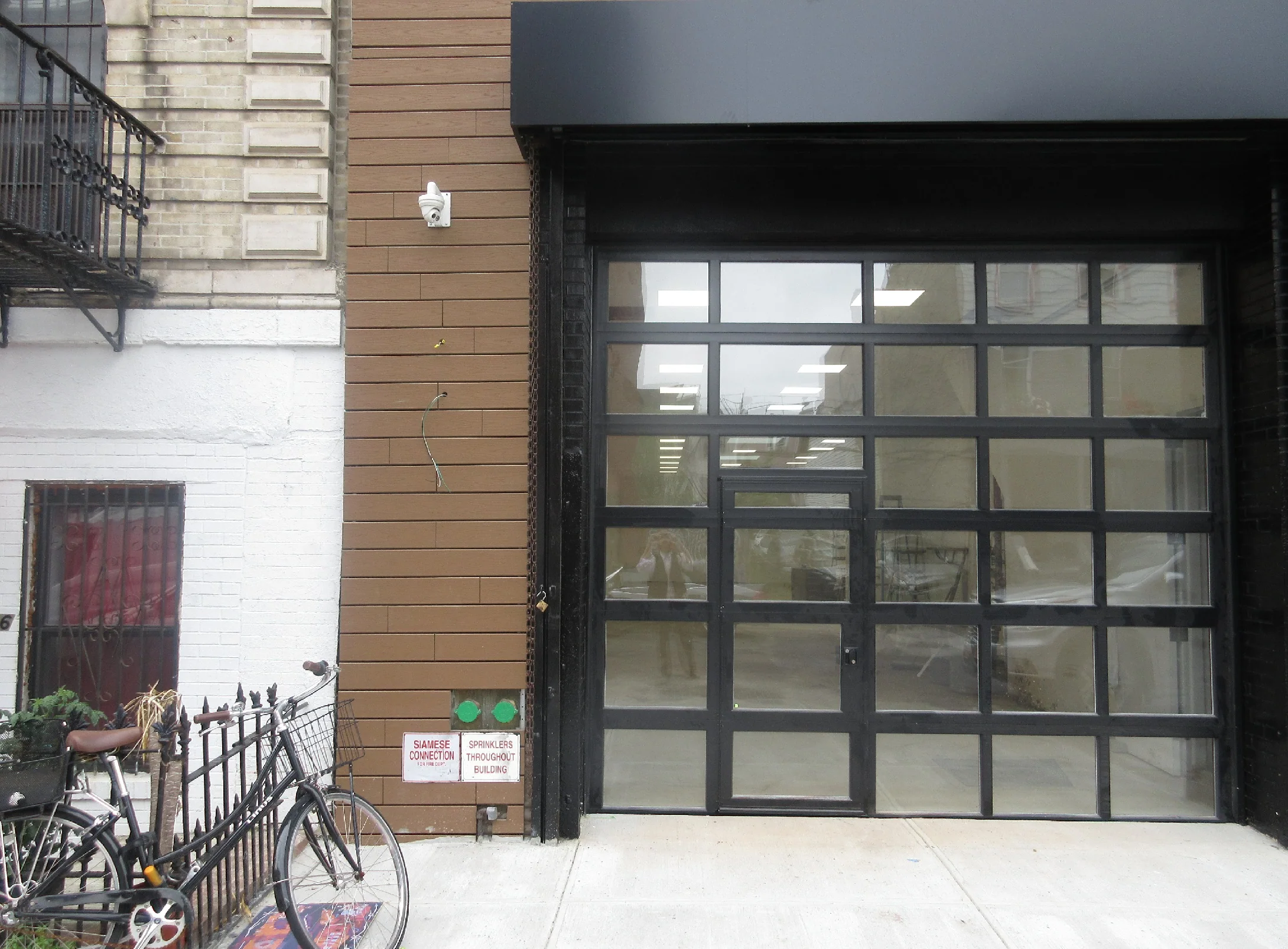

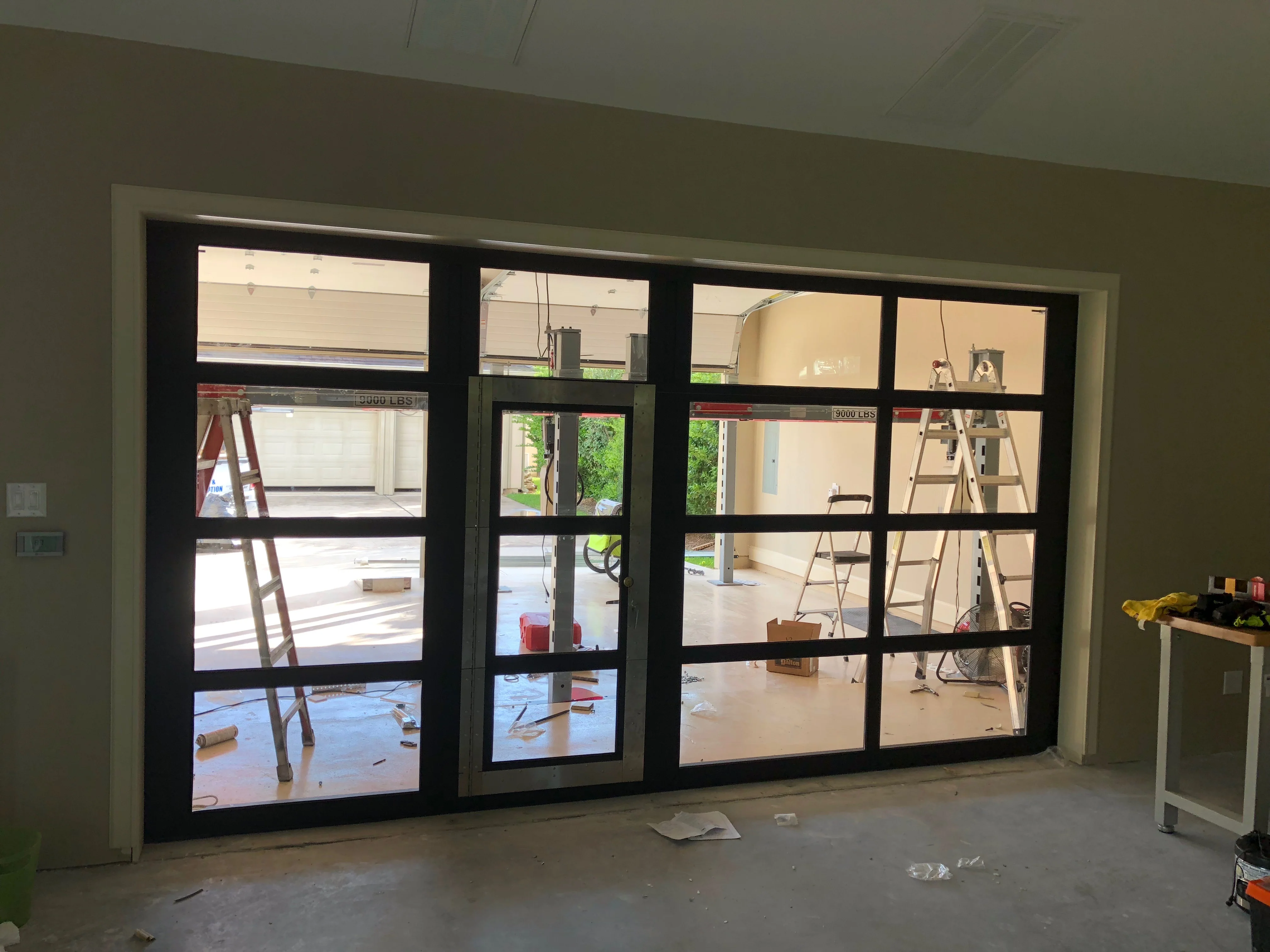

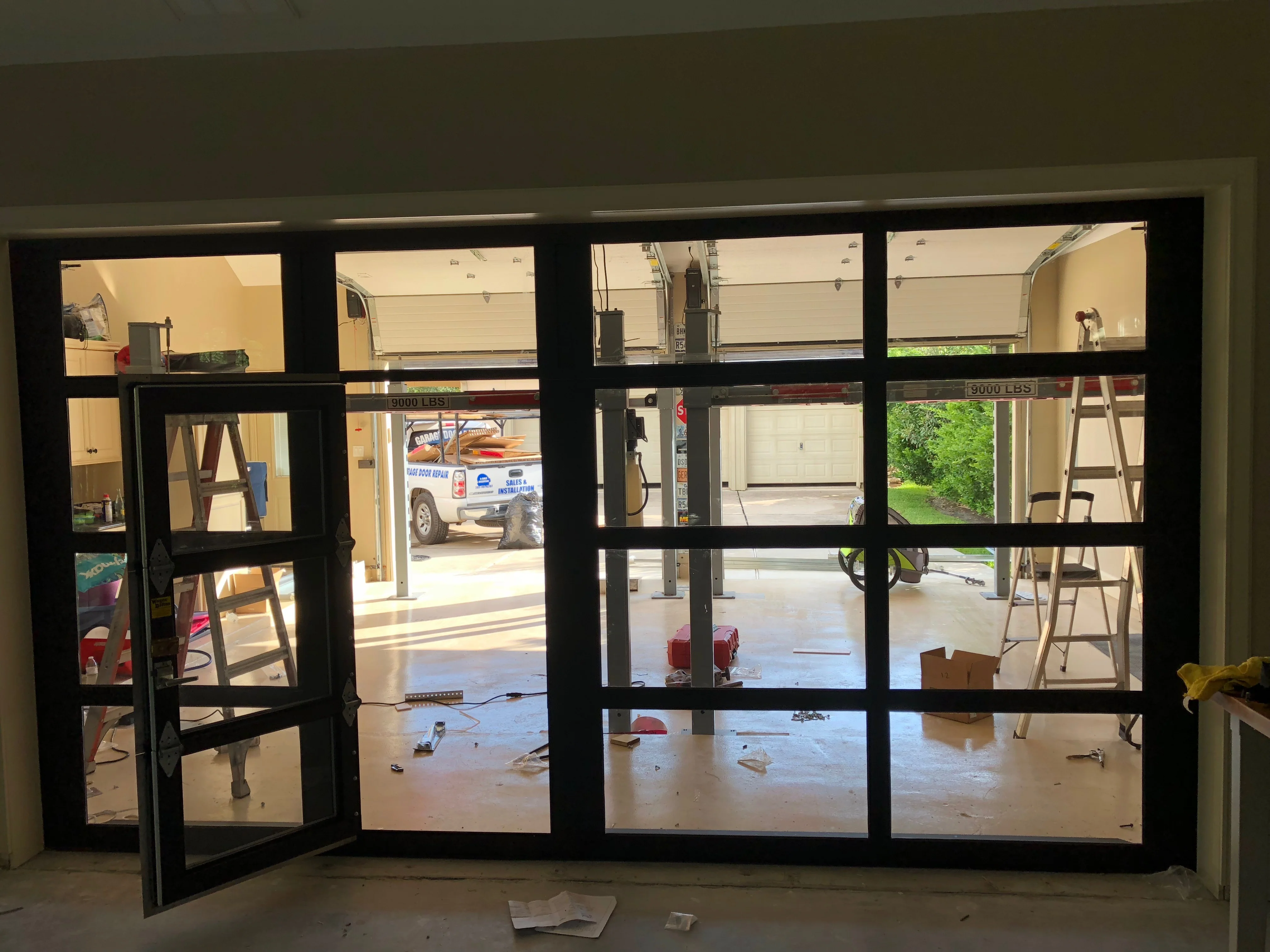

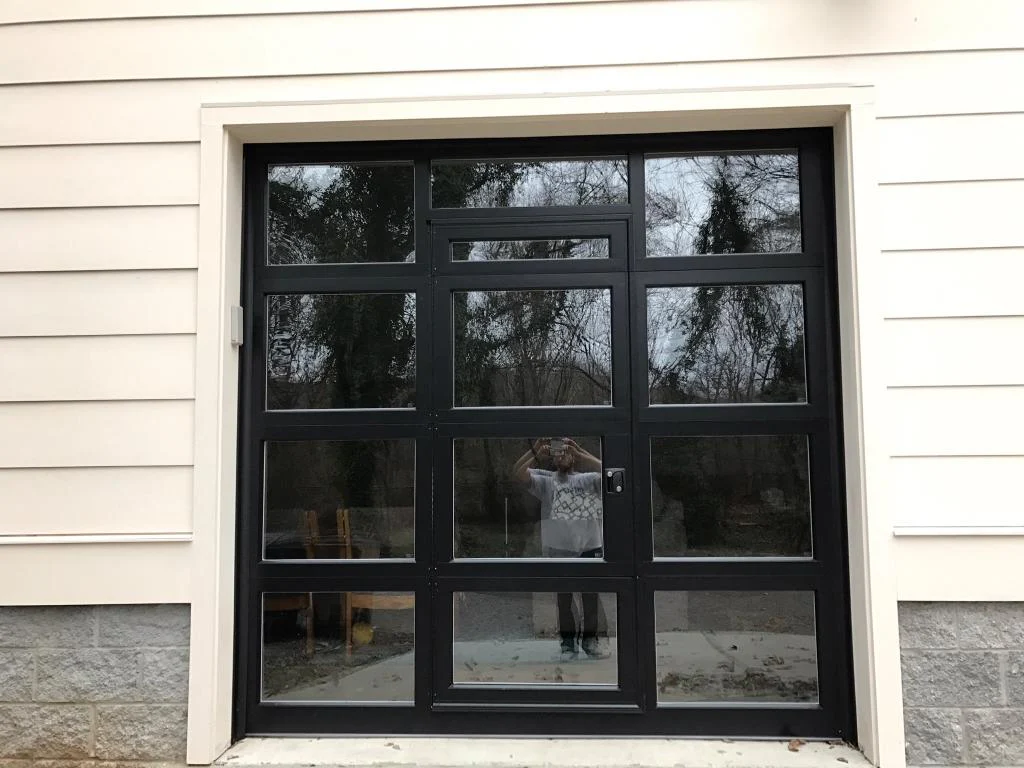

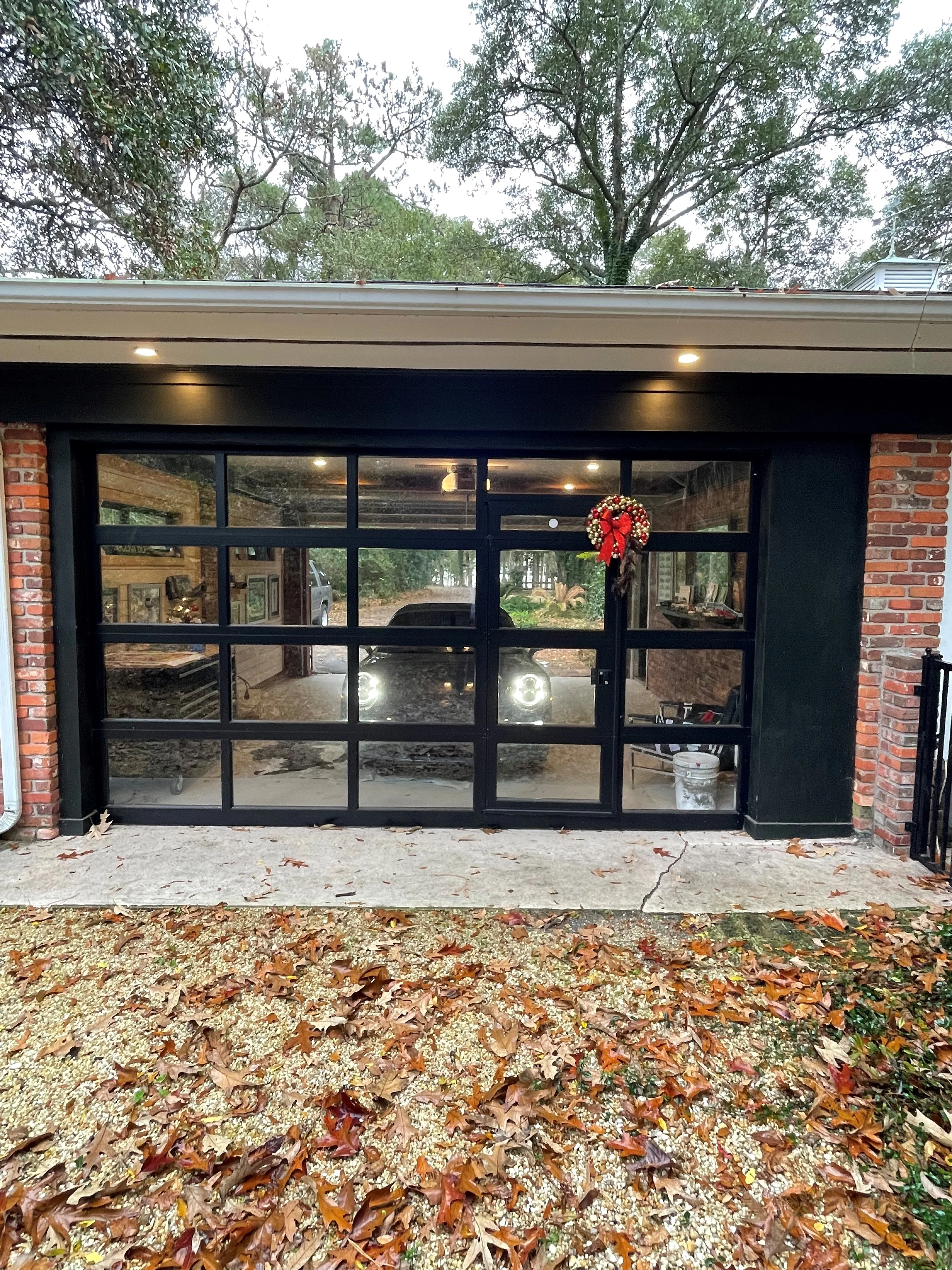

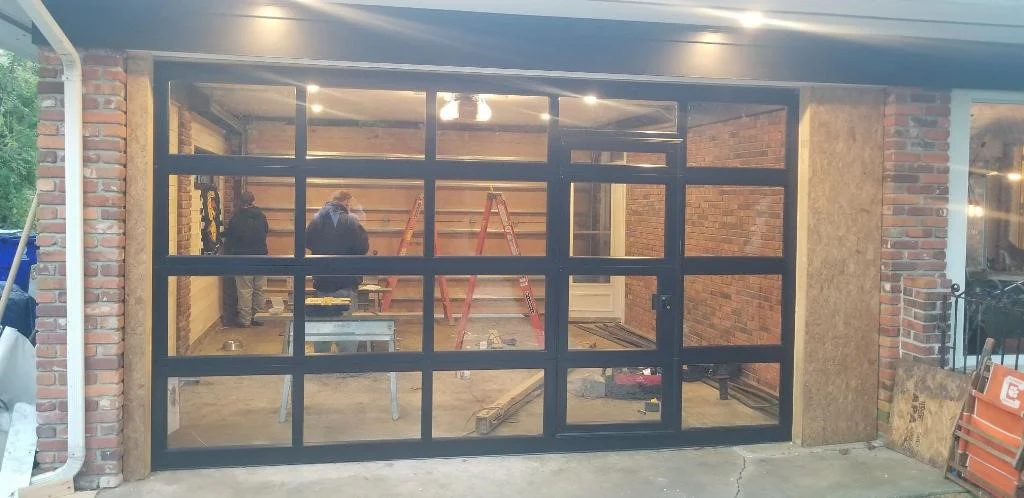

Contemporary Aluminum & Clear Tempered Glass Garage Door

- Custom Sizes & Other Aluminum Colors Available
- Garage Doors are delivered complete including tracks, springs & hardware
- Lead Time: 7-8 Weeks
- Shipping to any residential or commercial address nationwide
* Shipments to Alaska and Hawaii, please contact us for a quote

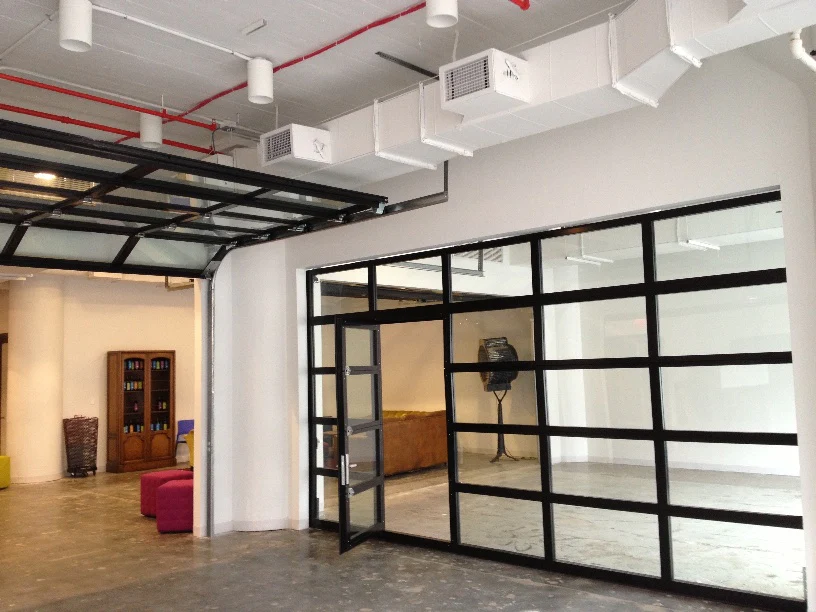

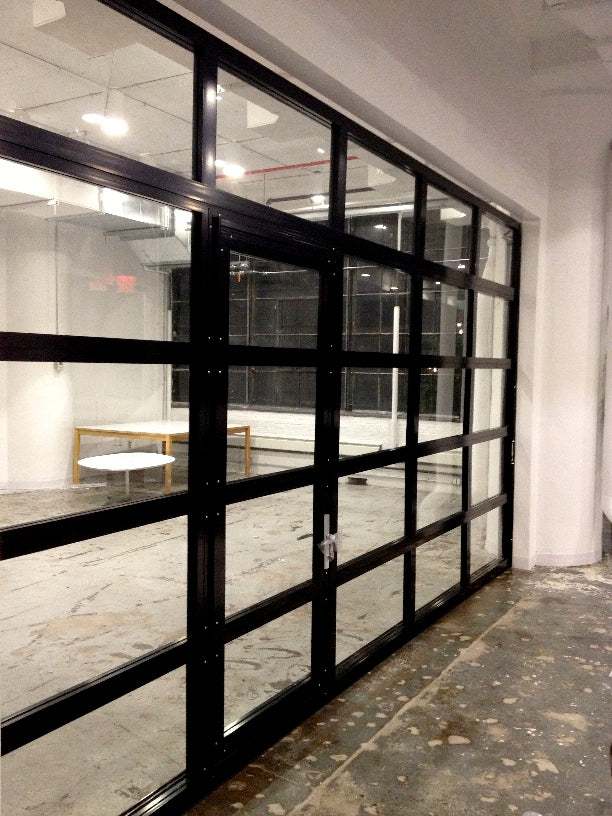

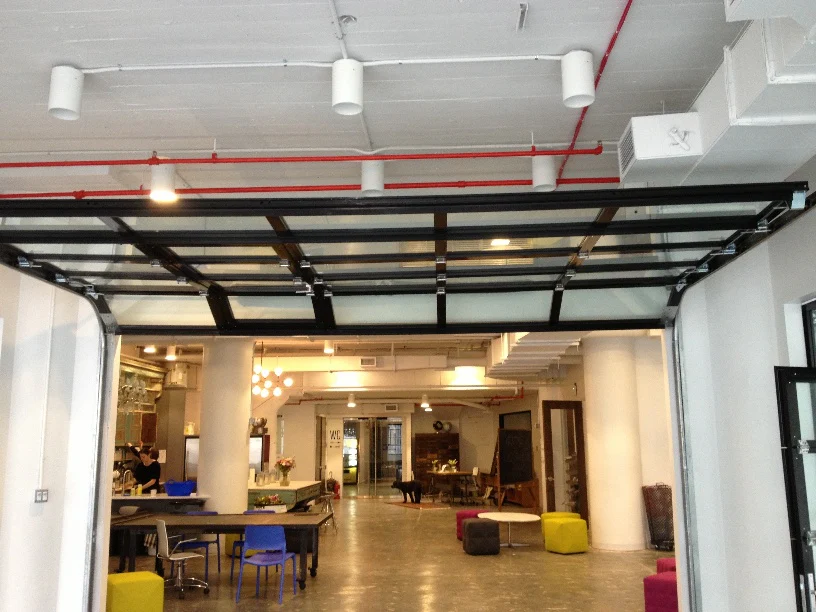

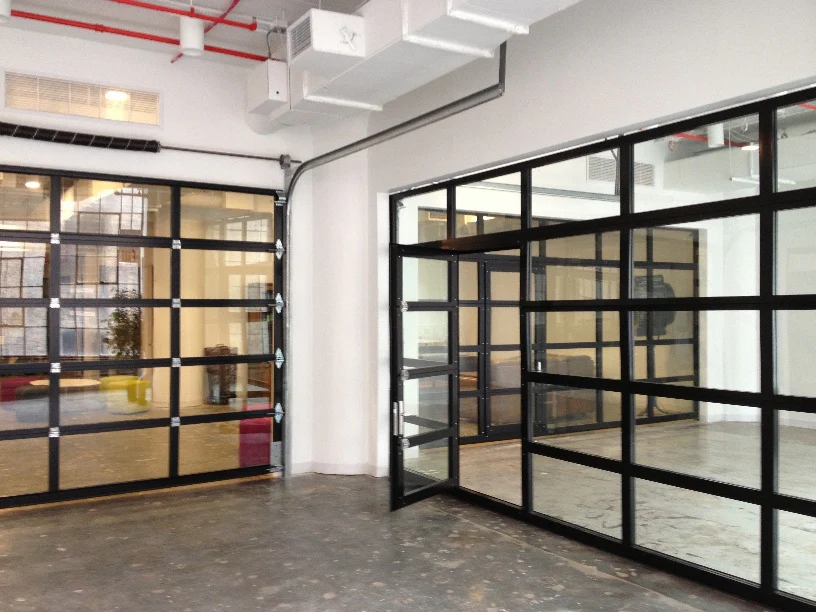

The perfect choice to modernize any home the glass garage doors not only transforms garages; it can also be used as an interior loft partition or a versatile patio door to seamlessly merge indoor and outdoor living spaces. At the press of a button, the garage doors are automatically raised, allowing traffic to flow during gatherings. Closed, they create an attractive wall of windows, adding a panoramic view to any living space. Many window options are available to control the degree of light transmission and privacy. Insulated glass is also available for increased energy efficiency.





Requirements:

1. Minimum Headroom Clearance cannot be less than 34" to allow for the use of High-Lift (15"-Radius) Tracks
2. Maximum garage door width available up to 14’
3. Minimum garage door height required is 8’
4. Standard 4” step over - not wheel chair (ADA) accessible because it can be a tripping hazard. Recommended for private use only.

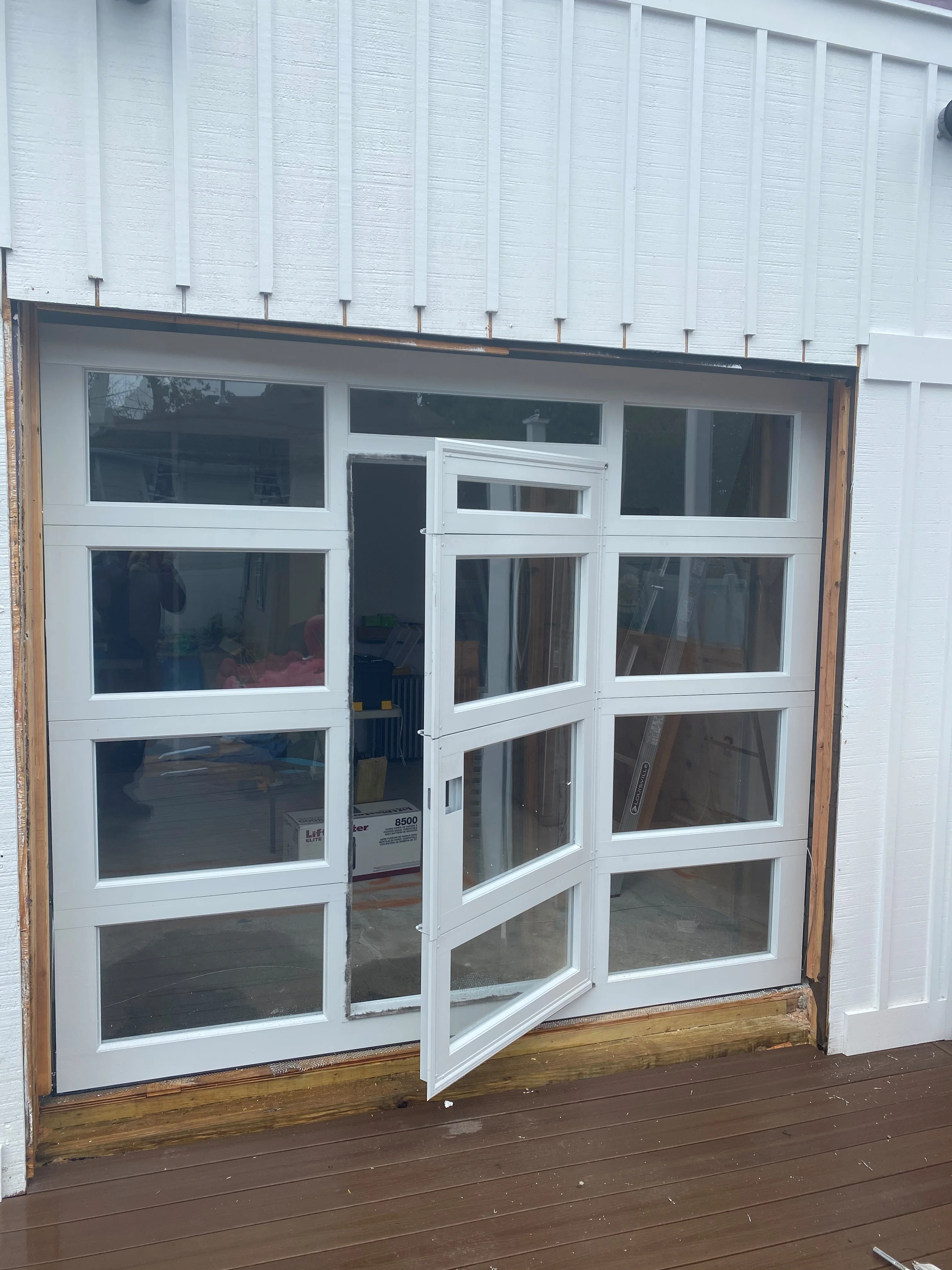

5. The Passage Door cannot be wider than 36".

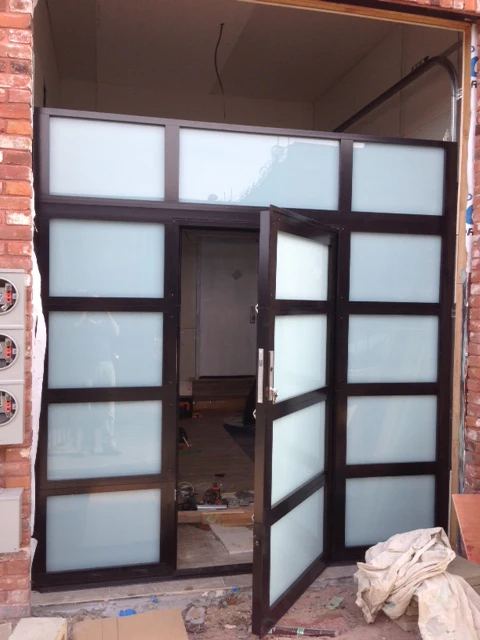

6. The Passage Door is available in “swing-outward” option only.
7. We recommend manual operation only for this door as they can be easily damaged with the use of an automatic/motor if the “passing door” is not in the proper closed position at time of opening or closing.



Aluminum Color Options
Clear Anodized Aluminum (Natural Color)
White Powder Coat Aluminum
Black Anodized Aluminum
Dark Bronze Anodized Aluminum
Other colors are also available

 Specifications:

1. Aluminum Finish: Natural Anodized Aluminum
2. Frame Thickness: 2-1/8" Rust-proof Aluminum Frame
3. Frame Color Options: Natural Anodized Aluminum, Powder Coat White. (Other Colors are available for additional cost: Anodized Dark Bronze, Anodized Black, Powder Coat Black and Powder Coat Brown)
4. Glass Thickness: 1/8" Single Pane, 1/4" Dual Pane Clear Tempered (Non-Insulated), 1/2" Dual Pane Tempered Clear Insulated Glass

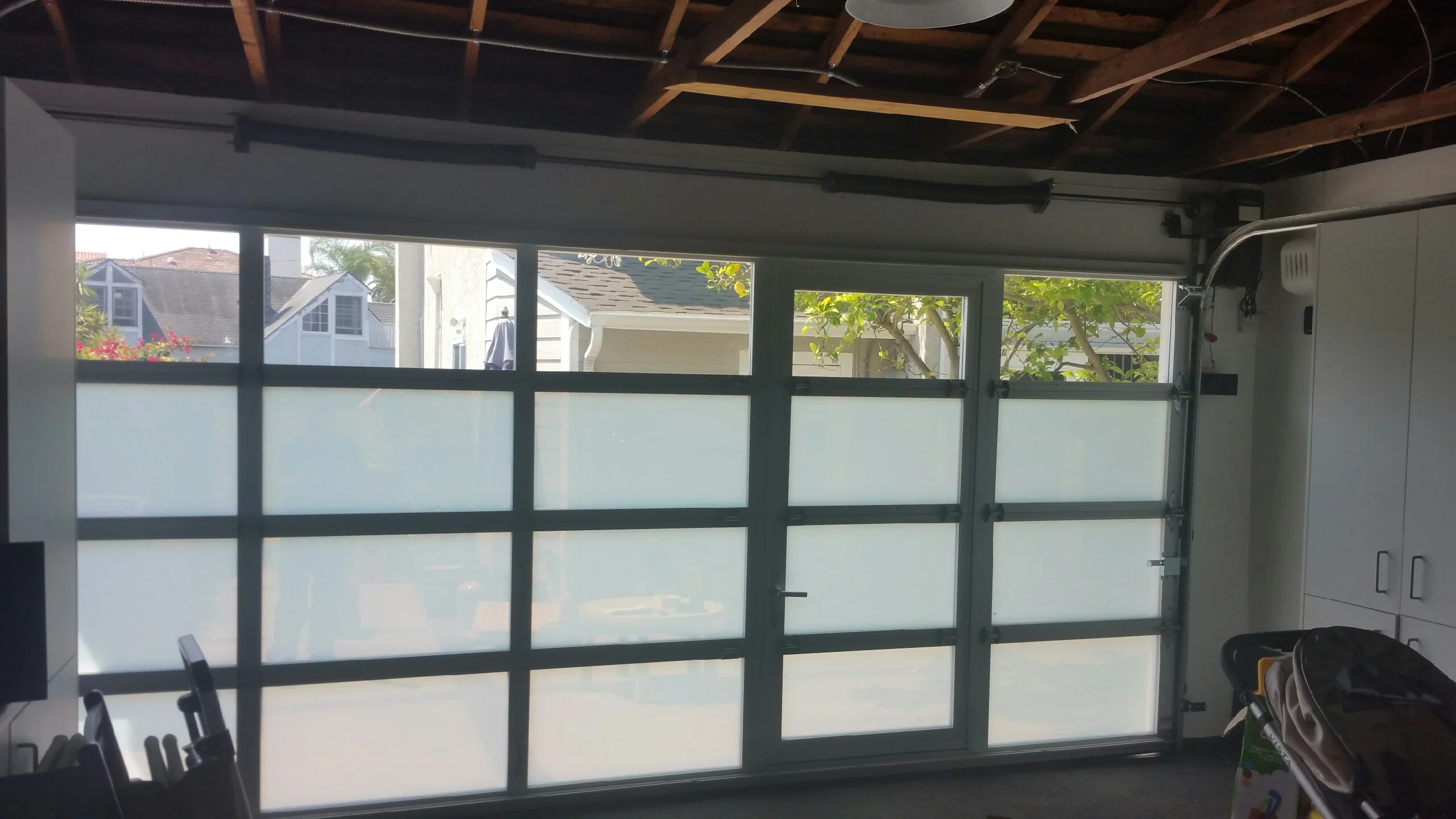

5. Glass Options: Thirteen window options for varying degrees of light transmission/privacy or solid aluminum panels for total privacy/protection
6. Custom Capabilities: Size, Finish, Glass
7. Maintenance Level: Low
8. Packaging: Loose
9. Project Type: New construction and replacement

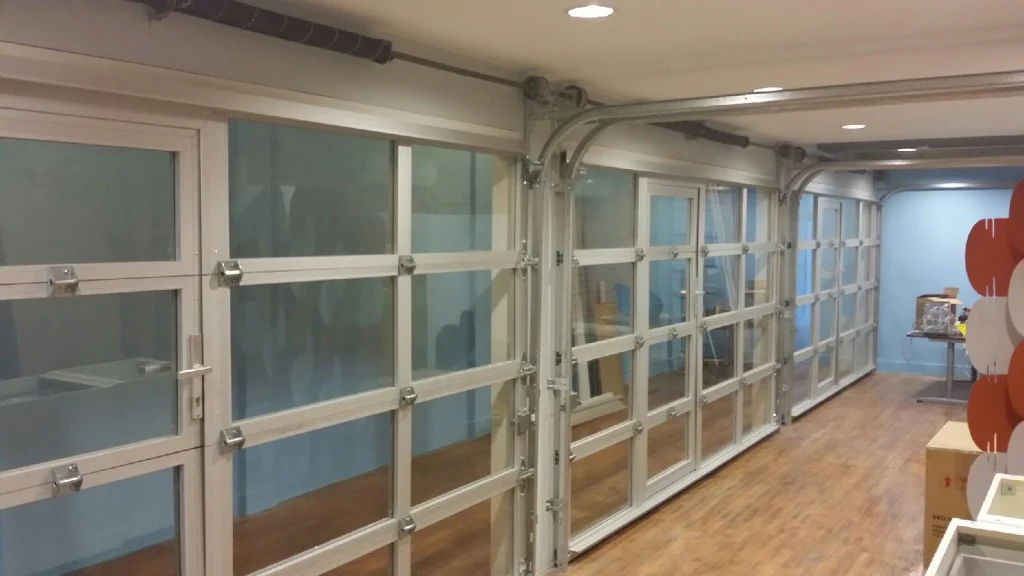

Track and Hardware Details:

1. Spring Type: Torsion, Oil Spring
2. Track Size: 2" Flag & Jamb Bracket Jambs
3. Track Mount: Bracket
4. Track Lift: Standard with High-Lift
5. Track Radius: 15”
6. Packaging: Loose
7. Rollers: Heavy-duty steel ball bearing rollers with nylon tires provide quiet operation
8. No lock hole
